输送系统  无动力式辊子输送机
输送货物  纸箱、圆筒、钢制容器、托盘、周转箱等
适用场合  室内输送、食品行业
轴承组件  钢座材质  尼龙66
                  端盖材质  聚丙烯(PP)
                  6002双面密封精度级轴承GB/T276-94

直缝电焊钢管GB/T13793-1992
外径32,38,50,57,60mm

不锈钢焊接管GB/T12770-1991
外径32,38,50,60mm

铝合金挤圆管GB/T4436-1995
外径38,50,60mm
聚氯乙烯(PVC)工程材料
外径38,50mm

冷拉圆钢GB/T905-1994
冷拉六角钢GB/T905-1994
镀锌处理(仅用于不锈钢外管时)

弹簧压入式直径10,12
全扁榫式直径10,12
内牙轴式直径10,12
通轴销孔式直径10,12

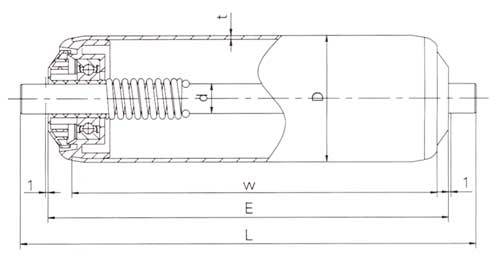

弹簧压入式
辊子外径 D
轴芯直径 d
32
10
E = W + 11     L = W + 33
38
12
E = W + 10     L = W + 32
50,60
12
E = W + 9    L = W + 31
优选长度:
E = 304,352,405,456,504,558,609,656,710,761,863
外管材质
管径及壁厚
轴芯直径 d
D × t
Ø8
Ø12
Ø11 hex(六角轴)
钢制镀锌
Ø32 × 1.2
AOOB-HBA-ABA

Ø38 × 1.2
AOOB-HCA-ADA
Ø50 × 1.5
AOOB-HGA-ADA
AOOB-HGA-ALA
Ø60 × 1.5
AOOB-HIA-ADA
Ø60 × 2.0
AOOB-HJA-ADA
钢制镀铬
Ø38 × 1.2
AOOB-HCB-ADA
Ø50 × 1.5
AOOB-HGB-ADA
AOOB-HGB-ALA
Ø60 × 1.5
AOOB-HIB-ADA
Ø60 × 2.0
AOOB-HJB-ADA
不锈钢
Ø32 × 1.2
AOOB-NBC-BBA

Ø38 × 1.2
AOOB-NCC-BDA
Ø50 × 1.5
AOOB-NFC-BDA
AOOB-NFC-BLA
Ø60 × 1.5
AOOB-NIC-BDA
Ø60 × 2.0
AOOB-NJC-BDA
铝合金
Ø38 × 1.2
AOOB-ADC-ADA
Ø50.6 × 1.5
AOOB-AFC-ADA
Ø60 × 2.0
AOOB-AJC-ADA

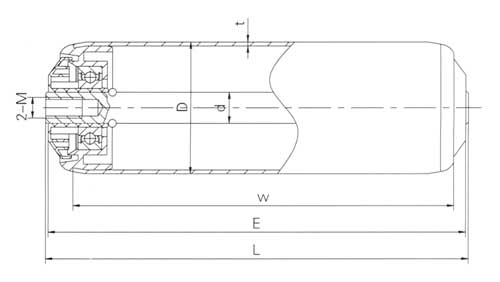

内牙轴式
辊子外径 D
轴芯直径 d
32
10
E = W + 11     L = W + 13
38
12
E = W + 10     L = W + 12
50,60
12
E = W + 9    L = W + 11
优选长度:
E = 304,352,405,456,504,558,609,656,710,761,863
外管材质
管径及壁厚
轴芯直径 d
D × t
Ø10 / M5 × 10
Ø12 / M8 × 15
钢制镀锌
Ø32 × 1.2
AOOB-HBA-ABB

Ø38 × 1.2
AOOB-HCA-ADB
Ø50 × 1.5
AOOB-HGA-ADB
Ø60 × 1.5
AOOB-HIA-ADB
Ø60 × 2.0
AOOB-HJA-ADB
钢制镀铬
Ø38 × 1.2
AOOB-HCB-ADB
Ø50 × 1.5
AOOB-HGB-ADB
Ø60 × 1.5
AOOB-HIB-ADB
Ø60 × 2.0
AOOB-HJB-ADB
不锈钢
Ø32 × 1.2
AOOB-NBC-BBB

Ø38 × 1.2
AOOB-NCC-BDB
Ø50 × 1.5
AOOB-NFC-BDB
Ø60 × 1.5
AOOB-NIC-BDB
Ø60 × 2.0
AOOB-NJC-BDB
铝合金
Ø38 × 1.2
AOOB-ADC-ADB
Ø50.6 × 1.5
AOOB-AFC-ADB
Ø60 × 2.0
AOOB-AJC-ADB

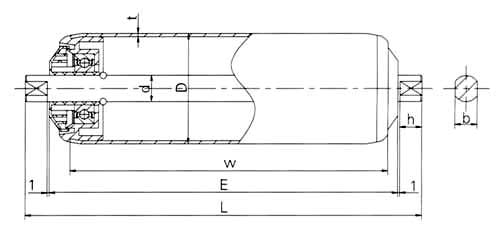

全扁榫式
辊子外径 D
轴芯直径 d
32
10
E = W + 11     L = W + 33
38
12
E = W + 10     L = W + 32
50,60
12
E = W + 9    L = W + 31
优选长度:
E = 304,352,405,456,504,558,609,656,710,761,863
外管材质
管径及壁厚
轴芯直径 d
D × t
Ø10 / bh 6 × 10
Ø12 / bh 8 × 10
钢制镀锌
Ø32 × 1.2
AOOB-HBA-ABC

Ø38 × 1.2
AOOB-HCA-ADC
Ø50 × 1.5
AOOB-HGA-ADC
Ø60 × 1.5
AOOB-HIA-ADC
Ø60 × 2.0
AOOB-HJA-ADC
钢制镀铬
Ø38 × 1.2
AOOB-HCB-ADC
Ø50 × 1.5
AOOB-HGB-ADC
Ø60 × 1.5
AOOB-HIB-ADC
Ø60 × 2.0
AOOB-HJB-ADC
不锈钢
Ø32 × 1.2
AOOB-NBC-BBC

Ø38 × 1.2
AOOB-NCC-BDC
Ø50 × 1.5
AOOB-NFC-BDC
Ø60 × 1.5
AOOB-NIC-BDC
Ø60 × 2.0
AOOB-NJC-BDC
铝合金
Ø38 × 1.2
AOOB-ADC-ADC
Ø50.6 × 1.5
AOOB-AFC-ADC
Ø60 × 2.0
AOOB-AJC-ADC

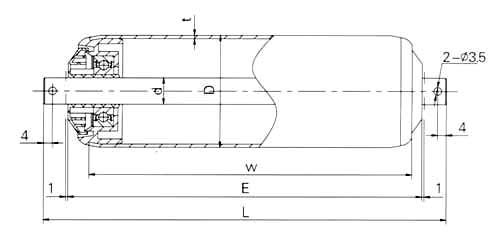

通销轴孔式
辊子外径 D
轴芯直径 d
32
10
E = W + 11     L = W + 33
38
12
E = W + 10     L = W + 32
50,60
12
E = W + 9    L = W + 31
优选长度:
E = 304,352,405,456,504,558,609,656,710,761,863
外管材质
管径及壁厚
轴芯直径 d
D × t
Ø10
Ø12
钢制镀锌
Ø32 × 1.2
AOOB-HBA-ABD

Ø38 × 1.2
AOOB-HCA-ADD
Ø50 × 1.5
AOOB-HGA-ADD
Ø60 × 1.5
AOOB-HIA-ADD
Ø60 × 2.0
AOOB-HJA-ADD
钢制镀铬
Ø38 × 1.2
AOOB-HCB-ADD
Ø50 × 1.5
AOOB-HGB-ADD
Ø60 × 1.5
AOOB-HIB-ADD
Ø60 × 2.0
AOOB-HJB-ADD
不锈钢
Ø32 × 1.2
AOOB-NBC-BBD

Ø38 × 1.2
AOOB-NCC-BDD
Ø50 × 1.5
AOOB-NFC-BDD
Ø60 × 1.5
AOOB-NIC-BDD
Ø60 × 2.0
AOOB-NJC-BDD
铝合金
Ø38 × 1.2
AOOB-ADC-ADD
Ø50.6 × 1.5
AOOB-AFC-ADD
Ø60 × 2.0
AOOB-AJC-ADD

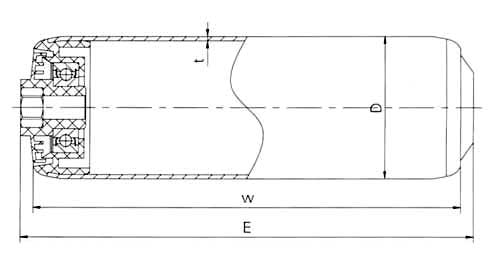

光轴内牙式
辊子外径 D
轴芯直径 d
50
M10
E = W + 9
优选长度:
E = 304,352,405,456,504,558,609,656,710,761,863
外管材质
管径及壁厚
轴芯直径 d
D × t
M10
钢制镀锌
Ø50 × 1.5
AOOB-HGA-ADE
不锈钢
Ø50 × 1.2
AOOB-NFC-BDE
铝合金
Ø50.6 × 1.5
AOOB-AFC-ADE
