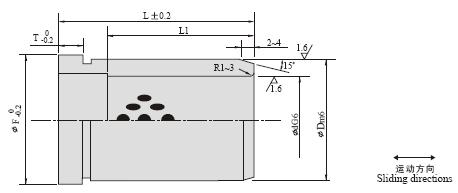

JGBF 标准轴承尺寸
规格
φd(G6)
φD(m6)
φF
T
L
L1
JGBF-12X19
12
+0.017
+0.006
18
+0.018
+0.007
25
4
19
19
JGBF-12X24
24
24
JGBF-12X29
29
29
JGBF-12X34
34
34
JGBF-13X19
13
20
+0.021
+0.008
5
19
19
JGBF-13X24
24
24
JGBF-13X29
29
25
JGBF-13X34
34
JGBF-13X39
39
JGBF-16X19
16
25
30
6
19
19
JGBF-16X24
24
24
JGBF-16X29
29
29
JGBF-16X34
34
30
JGBF-16X39
39
JGBF-16X49
49
JGBF-20X19
20
+0.020
+0.007
30
35
8
19
19
JGBF-20X24
24
24
JGBF-20X29
29
29
JGBF-20X34
34
34
JGBF-20X39
39
39
JGBF-20X49
49
40
JGBF-20X59
59
JGBF-25X24
25
+0.020
+0.007
35
+0.025
+0.009
40
8
24
24
JGBF-25X29
29
29
JGBF-25X34
34
34
JGBF-25X39
39
39
JGBF-25X49
49
49
JGBF-25X59
59
50
JGBF-25X69
69
JGBF-30X29
30
42
47
10
29
29
JGBF-30X34
34
34
JGBF-30X39
39
39
JGBF-30X49
49
49
JGBF-30X59
59
59
JGBF-30X69
69
60
JGBF-30X79
79
JGBF-35x39
35
+0.025
+0.009
48
+0.025
+0.009
54
10
39
39
JGBF-35x49
49
79
JGBF-35x59
59
59
JGBF-35x69
69
69
JGBF-35x79
79
70
JGBF-35x89
89
JGBF-35x99
99
JGBF-40x39
40
55
+0.030
+0.011
61
10
39
39
JGBF-40x49
49
49
JGBF-40x59
59
59
JGBF-40x69
69
69
JGBF-40x79
79
79
JGBF-40x89
89
80
JGBF-40x99
99
JGBF-40x109
109
JGBF-50x49
50
70
76
12
49
49
JGBF-50x59
59
59
JGBF-50x69
69
69
JGBF-50x79
79
79
JGBF-50x89
89
89
JGBF-50x99
99
90
JGBF-50x109
109
JGBF-50x119
119
JGBF-60x99
60
+0.029
+0.010
80
86
15
99
99
JGBF-60x109
109
109
JGBF-60x119
119
110
JGBF-60x129
129
JGBF-60x149
149
JGBF-70x99
70
90
+0.035
+0.013
96
15
99
99
JGBF-70x109
109
109
JGBF-70x119
119
119
JGBF-70x129
129
120
JGBF-70x149
149
JGBF-80x99
80
100
108
15
99
99
JGBF-80x109
109
109
JGBF-80x119
119
119
JGBF-80x129
129
120
JGBF-80x149
149
